Plow Bolt
--------------------------------------------------------------
You Are Here -> Home ->Bolts->Bolts Type->Plow Bolt
JF Engineering has been manufacturing Plow Bolt since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
Plow bolts are a specialized type of fastener. These are similar to carriage bolts, but the head of a plow bolt is concave or flat. The underside of the head tapers down into a cone-shape which is engineered to fit into a countersunk recess. Countersunk recesses are designed to accommodate particular plow bolts. Many of the bolts have a square base, but some can have a key or a locking slot instead. They come in both metric and standard sizes. Hardened or heat-treated carbon steel and stainless steel are the most common materials used to make plow bolts.
These were so named because of their early use in the manufacture of plows.We produce premium quality Plow Bolts from Stainless Steels,Grade 8, Super Alloys,Duplex steels & Super Duplex,Copper & Copper Alloys,Aluminum Alloys,Bronze alloys ,Titanium grades with ASTM/ASME/DIN Standards & Specifications.
A lot of heavy equipment requires the use of this type of bolt. Snowplows are one such example. An effective snowplow blade runs a smooth surface against the pavement to get rid of the snow. If the heads of the bolts are not flat, then they can gouge the ground and wear much quicker.
Orders at JF Engg are guaranteed fast delivery of the Plow Bolt in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Plow Bolt are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Plow Bolt in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Plow Bolt immediately against the purchase order.
For quick Quote on Plow Bolts, please contact us

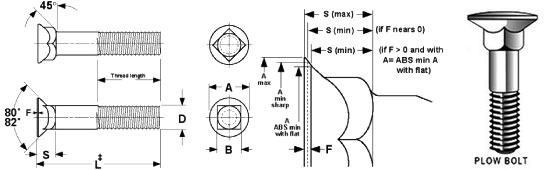

Plow Bolts Dimensions
| Size | Head Diameter | Body Dia. | Feed Thick | Head Thickness | Key Length | Key Width | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | E | F | S | G | W | |||||||
| Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | |
| 5/8 – 11 | 1.121 | 1.063 | .657 | .606 | .050 | .038 | .414 | .364 | .363 | .348 | .170 | .135 |
| 3/4 – 10 | 1.277 | 1.219 | .782 | .729 | .050 | .038 | .440 | .390 | .390 | .375 | .170 | .135 |
| 7/8 – 9 | 1.516 | 1.457 | .906 | .853 | .083 | .043 | .616 | .566 | .473 | .453 | .190 | .155 |
| 1 – 8 | 1.634 | 1.575 | 1.031 | .976 | .083 | .043 | .616 | .566 | .473 | .453 | .190 | .155 |
| 1 1/8 – 7 | 1.792 | 1.733 | 1.160 | 1.105 | .083 | .043 | .655 | .605 | .512 | .492 | .225 | .190 |
| 1 1/4 – 7 | 1.949 | 1.890 | 1.292 | 1.220 | .091 | .051 | .694 | .644 | .552 | .532 | .250 | .215 |
| 1 3/8 – 6 | 2.226 | 2.165 | 1.421 | 1.335 | .103 | .063 | .810 | .760 | .595 | .575 | .250 | .215 |
| 1 1/2 – 6 | 2.420 | 2.361 | 1.559 | 1.465 | .118 | .078 | .852 | .802 | .669 | .649 | .270 | .235 |
Ready Stock
Surface Coatings
General Queries While Buying Plow Bolt
- High rejection rate
- No control on quality and testing
- Non availability
- Late deliveries
- Poor packaging/ Unprofessional Packing
- Poor after sales service
- Supply of wrong grades
- Material inconsistent with ASTM Standards
- Very hard material for use
- Poor surface finish
- No Mill test report
- Dubious Practices
- Lack of knowledge
- Product fails under high pressure
- High pricing of the goods due to supplier commission
Why Choose JF Engg. While Buying Plow Bolt?
- High pressure sustainability
- Impeccable surface finish
- Product replacement warranty
- After sales support and service
- World class buying experience
- Very quick delivery
- Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
- 3rd Party inspection
- Government and Private Laboratory Testing
- Test certificate from ISO 17025 Standards Laboratory
- Same day shipping of the goods
- Highest stock in the country
- Stringent Quality Testing and Control
------------------------------------------------------------------------------------------------------------------------------
For More Information About Plow Bolt please call +91 22 2385 6385 / 2385 638 or send an email to info@jfengg.com
