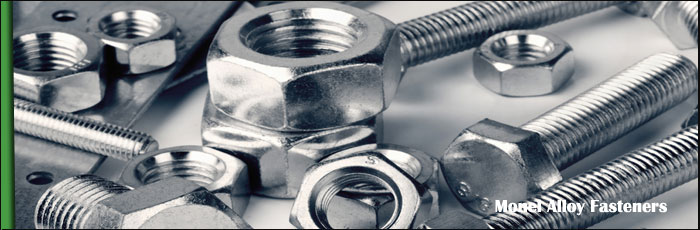

Monel Alloy Fasteners
----------------------------------------------------------------------------
You Are Here -> Home ->Exotic Alloy Fasteners->Monel Alloy Fasteners
Monel 400 / K500 werkstoff nr. 2.4360 / 75 Hex Head Bolts Fasteners Manufacturer, Suppliers & Exporter.
ASTM B161 / 163 Monel UNS No. N04400 / 5500 Bolts, Nuts, Washers, Hex Bolts, Socket Screw Suppliers in India.
JF Engineering has been manufacturing Monel Alloy Fasteners since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
when the task calls for Monel Alloy Fasteners, call for JF Engg.Monel is a trademark of Special Metals Corporation for a series of nickel alloys, primarily composed of nickel (up to 67%) and copper, with some iron and other trace elements. Monel was created by David H. Browne, chief metallurgist for International Nickel Co. Monel alloy 400 is binary alloy of the same proportions of nickel and copper as is found naturally in the nickel ore from the Sudbury (Ontario) mines. Monel was named for company president Ambrose Monell, and patented in 1906. One L was dropped, because family names were not allowed as trademarks at that time.
Monel® fasteners, like Monel 400 and K500, are made from a nickel-copper alloy and exhibit high strength, toughness and good corrosion resistance over a wide temperature range. An outstanding characteristic of Monel fasteners is that they offer exceptional resistance to hydrofluoric acid, a particularly tough acid to deal with, in all concentrations up to the boiling point. For hydrofluoric acid applications Monel fasteners are perhaps the most resistant of all commonly used specialty alloys.
We can provide a wide variety of Monel fasteners including; Monel nuts, Monel bolts, sockets, washers and more Monel Fasteners. If we do not have your Monel Fasteners in stock (Inch or Metric) we can have these manufactured to your specification.
Orders at JF Engg are guaranteed fast delivery of the Monel Alloy Fasteners in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Monel Alloy Fasteners are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Monel Alloy Fasteners in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Monel Alloy Fasteners immediately against the purchase order.
Specification
Material |
Size |
Length |
Specification |
Manufacturer |
Monel Alloy
|
M02 to M33 |
3 mm |
IS BS ASTM |
GKW Unbrako Kundan APL Sundaram Precision EBY Fastener Etc. |
Material: |
Hastelloy,.Cupro Nickel, Nickel, Monel,Inconel, Alloy 20 Etc. |
Standard : |
ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 |
Nickel Alloy in Grade: |
UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3) |
Type of Fasteners: |
Bolts : Bolts stud bolts, hex head bolts, socket hexagon head screw anchor bolts, u-bolts, J bolts, mushroom head square neck bolts, t- head bolts, wing screw, eye bolt, eye bolt, foundation bolts and structural bolts Washer : Plain washer , plain big & small OD washer , spring lock washer , spring washer heavy duty , tooth washer , star washer , tab washer with one & two tab Nuts : Hexagon nuts, hexagon coupling nuts, hexagon thin nut, square nut, hexagon castle nuts, self locking nut, hexagon domed cap nuts Screw : Pan head slotted screws, cheese head slotted screws, countersunk head slotted screws, countersunk raised head slotted screws, pan phillipse head screw, countersunk Phillipse raised head screws, slotted cheese trim head machine screws, socket head allen cap screws, allen countersunk socket head cap screws, socket head shoulder screws, socket head cap screw low head, hexagon socket set screw with flat point, hexagon socket set screws with cone point, hexagon socket set screw with dog point, hexagon socket set screws with dog point, hexagon socket set screws with cup point, imprial socket cap screws. Other : Threaded rod, as per drawing and customers spec. coating, hot dipped galvanizing, phosphate, Teflon, xylon, zinc, cadmium.
|
In Form of: |
Hex, Square, Round , Threading as per Gauge Etc. |
Bolt Type
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Monel Alloy Fasteners Useful Info
Grade Designation
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NU-30M | NA 13 | МНЖМц 28-2,5-1,5 | NiCu30Fe |
| Monel K500 | 2.4375 | N05500 | - | - | - | - | - |
Chemical Composition
Typical compositional ranges for Monel Alloy Fasteners
Designation |
Cu % |
Al % |
Ti % |
Fe % |
Mn % |
Si % |
Ni % |
Monel 400 |
28-34 |
- |
- |
2.5 max. |
2.0 max. |
- |
63 min. |
Monel K-500 |
27-33 |
2.3-3.15 |
0.35-0.85 |
2.0 max. |
1.5 max. |
- |
63 min. |
Mechanical Properties
Typical mechanical properties for Monel Alloy Fasteners
Properties |
Metric |
Imperial |
Tensile strength(annealed) |
517-620 MPa |
75-90 ksi |
Yield strength |
172-345 MPa |
25-50 ksi |
Modulus of elasticity |
179 GPa |
26000 ksi |
Poisson’s ratio |
0.32 |
0.32 |
Common Grades of Monel Fasteners
Monel 400 Fasteners
A nickel-copper alloy with high strength and excellent corrosion resistance in a range of media including sea water, hydrofluoric acid, sulfuric acid, and alkalies. Used commonly in marine engineering, chemical and hydrocarbon processing applications.
Monel K-500 Fasteners
A precipitation-hardenable nickel-copper alloy that combines the corrosion resistance of Monel alloy 400 with greater strength (over 2x as strong) and hardness. It also has low permeability and is nonmagnetic to temperatures as low as -150°F (-101°C).
Monel Alloy Fasteners Price
-> |
Hot Sale Monel 400 K500 Fastener, Nut, Bolt, Washer |
|
US $0.7-5 / Piece
|
-> |
Threaded Rod,black,Stud Bolts & Thread Rod Special Alloy Steel Fastener Monel |
| US $0.1-10 / Piece |
Monel Alloy Fasteners Inventory
General Queries While Buying Monel Alloy Fasteners
- High rejection rate
- No control on quality and testing
- Non availability
- Late deliveries
- Poor packaging/ Unprofessional Packing
- Poor after sales service
- Supply of wrong grades
- Material inconsistent with ASTM Standards
- Very hard material for use
- Poor surface finish
- No Mill test report
- Dubious Practices
- Lack of knowledge
- Product fails under high pressure
- High pricing of the goods due to supplier commission
Why Choose JF Engg. While Buying Monel Alloy Fasteners?
- High pressure sustainability
- Impeccable surface finish
- Product replacement warranty
- After sales support and service
- World class buying experience
- Very quick delivery
- Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
- 3rd Party inspection
- Government and Private Laboratory Testing
- Test certificate from ISO 17025 Standards Laboratory
- Same day shipping of the goods
- Highest stock in the country
- Stringent Quality Testing and Control
------------------------------------------------------------------------------------------------------------------------------
For More Information About Monel Alloy Fasteners please call +91 22 2385 6385 / 2385 638 or send an email to info@jfengg.com
