Socket Cap Screw
--------------------------------------------------------------



You Are Here -> Home ->Bolts->Bolts Type->Socket Cap Screw









JF Engineering has been manufacturing Socket Cap Screw since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.



Socket cap screws are high-strength tension fasteners designed for clamping assemblies and are commonly used in tool and die fixture applications. Socket screws, also known as cap screw,socket head cap screw,allen bolt,allen head cap screw or hex head cap screw, are available in several head styles and materials. Used in many applications, socket screws are reliable and durable.



We at JF Engg Manufacture these cap screw with DIN 912 Standard & DIN 6912 in variety of Material ranging from Stainless Steel,Nickel based alloys viz. INCONEL, MONEL, HASTELLOY, INCOLOY to Copper, Cupro Nickel,,Duplex & Super Duplex Stainless Steel. We can produce these Hex Head Cap Screw in M5 upto M48 With desired length & surface Finish.



Orders at JF Engg are guaranteed fast delivery of the Socket Cap Screw in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Socket Cap Screw are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Socket Cap Screw in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Socket Cap Screw immediately against the purchase order.

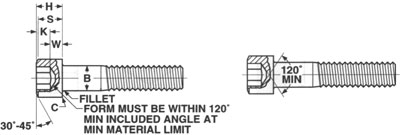

Socket Cap Screw Dimensions









Nominal Size or Basic Screw Diameter

B

D

H

S

C

X

K

W

Body Diameter

Head Diameter

Head Height

Head Side Height

Chamfer or Radius

Hexagon Socket Size

Key Engage- ment

Wall Thick- ness

Max

Min

Max

Min

Max

Min

Min

Max

Nom

Min

Min

4 .1120 5 .1250 6 .1380 8 .1640 10 .1900 1/4 .2500 5/16 .3125 3/8 .3750

.1120 .1250 .1380 .1640 .1900 .2500 .3125 .3750

.1075 .1202 .1329 .1585 .1840 .2435 .3053 .3678

.183 .205 .226 .270 .312 .375 .469 .562

.176 .198 .218 .262 .303 .365 .457 .550

.112 .125 .138 .164 .190 .250 .312 .375

.108 .121 .134 .159 .185 .244 .306 .368

.101 .112 .124 .148 .171 .225 .281 .337

.005 .005 .005 .005 .005 .008 .008 .008

3/32 3/32 7/64 9/64 5/32 3/16 1/4 5/16

.094 .094 .109 .141 .156 .188 .250 .312

.051 .057 .064 .077 .090 .120 .151 .182

.038 .043 .047 .056 .065 .095 .119 .143

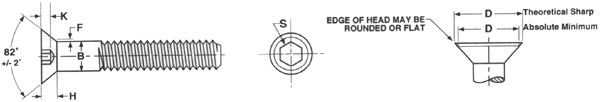

Flat Head Socket Cap Screws Dimension











Nominal Size	B		D		H		S	K	F
	Body Diameter		Head Diameter		Head Height		Hexagon Socket Size	Key Engage- ment	Fillet Extension Above 0
			Theo- retical Sharp Max	Abs Min	Refer- ence	Flush- ness Toler- ance
	Max	Min					Nom	Min	Max
4 5 6 8	0.1120 0.1250 0.1380 0.1640	0.1075 0.1202 0.1329 0.1585	0.255 0.281 0.307 0.359	0.218 0.240 0.263 0.311	0.083 0.090 0.097 0.112	0.011 0.012 0.013 0.014	1/16 5/64 5/64 3/32	0.055 0.061 0.066 0.076	0.012 0.014 0.015 0.015
10 1/4 5/16 3/8	0.1900 0.2500 0.3125 0.3750	0.1840 0.2435 0.3053 0.3678	0.411 0.531 0.656 0.781	0.359 0.480 0.600 0.720	0.127 0.161 0.198 0.234	0.015 0.016 0.017 0.018	1/8 5/32 3/16 7/32	0.087 0.111 0.135 0.159	0.015 0.015 0.015 0.015
7/16 1/2 5/8 3/4	0.4375 0.5000 0.6250 0.7500	0.4294 0.4919 0.6163 0.7406	0.844 0.938 1.188 1.438	0.781 0.872 1.112 1.355	0.234 0.251 0.324 0.396	0.018 0.018 0.022 0.024	1/4 5/16 3/8 1/2	0.159 0.172 0.220 0.220	0.015 0.015 0.015 0.015





Button Head Socket Cap Screws Dimensions







Nominal Size	D		H		X	S		K	F		L
	Head Diameter		Head Height		Head Side Height	Hexagon Socket Size		Key Engage ment	Fillet Extension		Max Standard Length
	Max	Min	Max	Min	Ref	Nom		Min	Max	Min	Nom
4 5 6 8	0.213 0.238 0.262 0.312	0.201 0.226 0.250 0.298	0.059 0.066 0.073 0.087	0.051 0.055 0.063 0.077	0.015 0.015 0.015 0.015	1/16 5/64 5/64 3/32	0.062 0.078 0.078 0.094	0.035 0.044 0.044 0.052	0.010 0.010 0.010 0.015	0.005 0.005 0.005 0.010	0.50 0.50 0.63 0.75
10 1/4 5/16 3/8	0.361 0.437 0.547 0.656	0.347 0.419 0.527 0.636	0.101 0.132 0.166 0.199	0.091 0.122 0.152 0.185	0.020 0.031 0.031 0.031	1/8 5/32 3/16 7/32	0.125 0.156 0.188 0.219	0.070 0.087 0.105 0.122	0.015 0.020 0.020 0.020	0.010 0.015 0.015 0.015	1.00 1.00 1.00 1.25
1/2 5/8	0.875 1.000	0.851 0.970	0.265 0.331	0.245 0.311	0.046 0.062	5/16 3/8	0.312 0.375	0.175 0.210	0.030 0.030	0.020 0.020	2.00 2.00
