Flange Lock Nut
--------------------------------------------------------------
You Are Here -> Home ->Nuts->Nuts Type->Flange Lock Nut
JF Engineering has been manufacturing Flange Lock Nut since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
A Flange lock Nut is same as flange nuts with additional locking feature similar to nylon lock nuts.JF Engg Manufactures these flange lock nuts as per DIN 6926 Standard & DIN 6927 Standard.We offer Flange lock nuts in stainless steel,Carbon Steel,Alloy Steel,Exotic Nickel Alloys,Titanium,Cupro Nickel etc.
Flange lock nuts need to be fully engaged with the bolt/screw threads for the locking feature to be effective. To ensure full thread engagement, bolts/screws should be long enough to allow at least two full threads to extend beyond the nut face after tightening. Conversely, there should be two full threads exposed on the head side of the nut to make sure the nut can be properly tightened.
Orders at JF Engg are guaranteed fast delivery of the Flange Lock Nut in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Flange Lock Nut are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Flange Lock Nut in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Flange Lock Nut immediately against the purchase order.

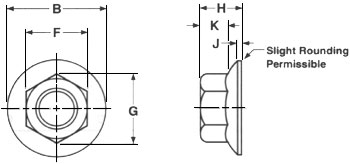

Flange Lock Nut Dimensions
Nominal Size or Basic Major Diameter of Thread |
F | G | B | H | K | J | |||||
---|---|---|---|---|---|---|---|---|---|---|---|
Width Across Flats | Width Across Corners | Flange Diameter | Nut Thickness | Wrench Height |
Flange Thickness | ||||||
Max | Min | Max | Min | Max | Min | Max | Min | Min | Max | ||
6 | 0.1380 | 0.312 | 0.302 | 0.361 | 0.342 | 0.422 | 0.406 | 0.171 | 0.156 | 0.10 | 0.02 |
8 | 0.1640 | 0.344 | 0.334 | 0.397 | 0.381 | 0.469 | 0.452 | 0.203 | 0.187 | 0.13 | 0.02 |
10 | 0.1900 | 0.375 | 0.365 | 0.433 | 0.416 | 0.500 | 0.480 | 0.219 | 0.203 | 0.13 | 0.03 |
1/4 | 0.2500 | 0.438 | 0.428 | 0.505 | 0.488 | 0.594 | 0.574 | 0.236 | 0.222 | 0.14 | 0.04 |
5/16 | 0.3125 | 0.500 | 0.489 | 0.577 | 0.557 | 0.680 | 0.660 | 0.283 | 0.268 | 0.17 | 0.04 |
3/8 | 0.3750 | 0.562 | 0.551 | 0.650 | 0.628 | 0.750 | 0.728 | 0.347 | 0.330 | 0.23 | 0.04 |
7/16 | 0.4375 | 0.688 | 0.675 | 0.794 | 0.768 | 0.937 | 0.910 | 0.395 | 0.375 | 0.26 | 0.04 |
1/2 | 0.5000 | 0.750 | 0.736 | 0.866 | 0.840 | 1.031 | 1.000 | 0.458 | 0.437 | 0.31 | 0.05 |
5/8 | 0.6250 | 0.938 | 0.922 | 1.083 | 1.051 | 1.281 | 1.248 | 0.569 | 0.545 | 0.40 | 0.05 |
3/4 | 0.7500 | 1.125 | 1.088 | 1.299 | 1.240 | 1.500 | 1.460 | 0.675 | 0.627 | 0.46 |
Ready Stock
Surface Coatings
General Queries While Buying Flange Lock Nut
- High rejection rate
- No control on quality and testing
- Non availability
- Late deliveries
- Poor packaging/ Unprofessional Packing
- Poor after sales service
- Supply of wrong grades
- Material inconsistent with ASTM Standards
- Very hard material for use
- Poor surface finish
- No Mill test report
- Dubious Practices
- Lack of knowledge
- Product fails under high pressure
- High pricing of the goods due to supplier commission
Why Choose JF Engg. While Buying Flange Lock Nut?
- High pressure sustainability
- Impeccable surface finish
- Product replacement warranty
- After sales support and service
- World class buying experience
- Very quick delivery
- Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
- 3rd Party inspection
- Government and Private Laboratory Testing
- Test certificate from ISO 17025 Standards Laboratory
- Same day shipping of the goods
- Highest stock in the country
- Stringent Quality Testing and Control
------------------------------------------------------------------------------------------------------------------------------
For More Information About Flange Lock Nut please call +91 22 2385 6385 / 2385 638 or send an email to info@jfengg.com
