Heavy Hex Nut
--------------------------------------------------------------



You Are Here -> Home ->Nuts->Nuts Type->Heavy Hex Nut









Heavy Hex NutJF Engineering has been manufacturing Heavy Hex Nut since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.



Heavy hex nuts are slightly larger and thicker than standard (finished) hex nuts. There are numerous grades and the heavy pattern is typically used for large diameter and high strength bolts. See our nut compatibility chart to determine the compatible heavy hex nut(s) for a specific grade of bolt. Since hot-dip galvanizing typically adds 2.2 to 5 mils of thickness to the threaded portion of a fastener, galvanized heavy hex nuts are tapped oversize to compensate for the corrosion resistant coating on the bolts.



JF Engg  Offers Heavy Hex Nuts in Stainless Steel,Nickel Alloys,Carbon Steel,Alloy Steel,High Tensile alloy Steel,Non ferrous materials like bronze,copper,aluminum,silicon bronze,titanium etc. We manufacture these high/heavy hex nuts as per DIN 5587 Standard,ISO 4033 Standard.



Orders at JF Engg are guaranteed fast delivery of the Heavy Hex Nut in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Heavy Hex Nut are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Heavy Hex Nut in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Heavy Hex Nut immediately against the purchase order.



Stock

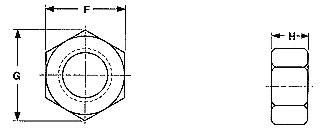

Heavy Hex Nut Dimensions









Bolt Diam. F C H Weight
(lbs.)		 Part Numbers
Width Across Flats Width Across Corners Thickness A563A A1942H A563DH
Domestic Import Domestic Import Domestic
Basic Max Min Max Min Basic Max Min Black Galv. Black Galv. Black Galv. Black Galv. Black Galv.
1⁄2 7⁄8 0.875 0.850 1.010 0.969 31⁄64 0.504 0.464 0.07 - 19505 11729 11730 16356 - 11761 11762 - 18345
5⁄8 11⁄16 1.062 1.031 1.227 1.175 39⁄64 0.631 0.587 0.12 - - 11731 11732 16358 16359 11763 11764 - 18346
3⁄4 11⁄4 1.250 1.212 1.443 1.382 47⁄64 0.758 0.710 0.20 16306 16307 11733 11734 16360 16361 11765 11766 - 18347
7⁄8 17⁄16 1.438 1.394 1.660 1.589 55⁄64 0.885 0.833 0.30 16308 16309 11735 11736 16362 16363 11767 11768 - 18348
1 15⁄8 1.625 1.575 1.876 1.796 63⁄64 1.012 0.956 0.43 16310 16311 11737 11738 16364 16365 11769 11770 - 18349
11⁄8 113⁄16 1.812 1.756 2.093 2.002 17⁄64 1.139 1.079 0.59 16312 16313 11739 11740 16366 - 11771 11772 - 16367
11⁄4 2 2.000 1.938 2.309 2.209 17⁄32 1.251 1.187 0.79 16314 16315 11741 11742 16370 - 11773 11774 - 16371
13⁄8 23⁄16 2.188 2.119 2.526 2.416 111⁄32 1.378 1.310 1.02 - - 11743 11744 16374 - 11775 11776 - 16375
11⁄2 23⁄8 2.375 2.300 2.742 2.622 115⁄32 1.505 1.433 1.31 16318 16319 11745 11746 16378 - 11777 11778 - 16379
15⁄8 29⁄16 2.562 2.481 2.959 2.828 119⁄32 1.632 1.556 1.62 - - 17750 17751 16380 16381 11779 11780 16380 16381
13⁄4 23⁄4 2.750 2.662 3.175 3.035 123⁄32 1.759 1.679 2.04 16322 16323 11747 11748 16384 16385 12549 12550 16384 16385
17⁄8 215⁄16 2.938 2.844 3.392 3.242 127⁄32 1.886 1.802 2.41 - - 19433 19434 - - - - - -
2 31⁄8 3.125 3.025 3.608 3.449 131⁄32 2.013 1.925 2.99 16324 16325 11749 11750 16390 16391 11783 11784 16390 16391
21⁄4 31⁄2 3.500 3.388 4.041 3.862 213⁄64 2.251 2.155 4.19 16326 16327 11751 11752 16396 16397 12681 12682 16396 16397
21⁄2 37⁄8 3.875 3.750 4.474 4.275 229⁄64 2.505 2.401 5.64 16328 16329 11753 11754 16398 16399 12553 12554 16398 16399
23⁄4 41⁄4 4.250 4.112 4.907 4.688 245⁄64 2.759 2.647 7.38 16330 16331 15864 16041 16400 16401 12555 12556 16400 16401
3 45⁄8 4.625 4.475 5.340 5.102 261⁄64 3.013 2.893 9.50 19294 19308 15863 16042 16402 16403 12601 12602 16402 16403
31⁄4 5 5.000 4.838 5.774 5.515 33⁄16 3.252 3.124 11.94 - - 18395 - - - - - - -
31⁄2 53⁄8 5.375 5.200 6.207 5.928 37⁄16 3.506 3.370 15.26 - - 18495 - - - - - - -
33⁄4 53⁄4 5.750 5.562 6.640 6.341 311⁄16 3.760 3.616 18.12 - - - - - - - - - -
4 61⁄8 6.125 5.925 7.073 6.755 315⁄16 4.014 3.862 21.80 - - 11755 11756 16404 16405 - - 16404 16405

Dimensions per ASME B18.2.2 1987 (1999)





Ready Stock









Surface Coatings









General Queries While Buying Heavy Hex Nut



  • High rejection rate
  • No control on quality and testing
  • Non availability
  • Late deliveries
  • Poor packaging/ Unprofessional Packing
  • Poor after sales service
  • Supply of wrong grades
  • Material inconsistent with ASTM Standards
  • Very hard material for use
  • Poor surface finish
  • No Mill test report
  • Dubious Practices
  • Lack of knowledge
  • Product fails under high pressure
  • High pricing of the goods due to supplier commission





Why Choose JF Engg. While Buying Heavy Hex Nut?



  • High pressure sustainability
  • Impeccable surface finish
  • Product replacement warranty
  • After sales support and service
  • World class buying experience
  • Very quick delivery
  • Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
  • 3rd Party inspection
  • Government and Private Laboratory Testing
  • Test certificate from ISO 17025 Standards Laboratory
  • Same day shipping of the goods
  • Highest stock in the country
  • Stringent Quality Testing and Control



------------------------------------------------------------------------------------------------------------------------------



For More Information About Heavy Hex Nut please call +91 22 2385 6385 / 2385 638 or send an email to  info@jfengg.com
