JF Engineering has been manufacturing K Lock Nut since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
A Kep Lock Nuts familiarly known as K Lock nut, is a nut with an attached, free-spinning washer. It is used to make assembly more convenient.We Exclusively produce these K Lock Nuts in Stainless Steel Material.
Keps nuts are popular because they are low cost, reusable and the one-piece solution saves time over installing a separate lock washer and nut. However, if either the nut or washer is damaged, both must be replaced. Since they are not prevailing torque type lock nuts, they are suitable for use on long threaded assemblies and will not gall mating threads.
Orders at JF Engg are guaranteed fast delivery of the K Lock Nut in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The K Lock Nut are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of K Lock Nut in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the K Lock Nut immediately against the purchase order.

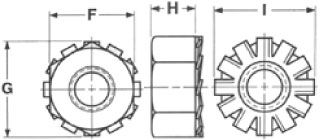

K Lock Nut Dimensions
| Metric K-Lock Nuts DIN 934K |
||||||
|---|---|---|---|---|---|---|
| Nominal Size | Thread Pitch | F | H | T | I | W |
| Width Across Flats | Nut Thickness | Total Thickness (Nut w/assembled washer) | Width of Washer | Washer Thickness | ||
| M3 | 0.50 | 5.5 | 2.40 | 3.20 | 6.30 | 0.45 |
| M4 | 0.70 | 7 | 3.20 | 4 | 8 | 0.45 |
| M5 | 0.80 | 8 | 4 | 5.10 | 9.20 | 0.60 |
| M6 | 1 | 10 | 5 | 6.10 | 11.0 | 0.60 |
| M8 | 1.25 | 13 | 6.50 | 7.90 | 14.90 | 0.80 |
| M10 | 1.50 | 17 | 8 | 9.60 | 19 | 0.90 |
