JF Engineering has been manufacturing Serrated Flange Nut since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
A flange nut looks like a standard hex nut from one side, but the bottom is widened into a circular flange, creating a bell-like shape. Manufacturers serrate the bearing surface of that flange to create serrated flange nuts, allowing for a better grip on the surface of the joint.Also termed serrated face nuts, spin lock or serrated tooth nuts, this type of fastener provides more resistance to vibration. As the nut is tightened onto the joint, the mating surface is scored by those serrations and a locking fit is achieved.
We produce premium quality Flange Nuts with serrated face in various metals & metal alloys with ASTM/ASME/DIN Standards & SpecificationsWe produce these Serrated Flange Nuts in Stainless Steel,Carbon Steel,Alloy Steel,Low Carbon Alloy Steel,Nickel Alloys like Inconel,Monel,Hastelloy,Incoloy,Alloy 20, non Ferrous metals like Titanium,Aluminum,Copper & Copper Alloys like Brass,Cupro Nickel,bronze,silicon bronze,aluminum bronze,phosphor bronze etc
Orders at JF Engg are guaranteed fast delivery of the Serrated Flange Nut in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Serrated Flange Nut are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Serrated Flange Nut in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Serrated Flange Nut immediately against the purchase order.

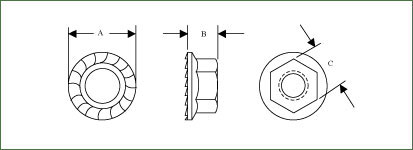

Serrated Flange Nut Dimensions
Size |
Width Across Flats |
Width Across Corners |
Flange Diameter |
Nut Thickness |
Wrench Height |
Flange Thickness |
Runout |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
F |
G |
B |
H |
J |
K |
J |
|||||
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Min |
Min |
Max |
|
(.138) |
.312 |
.302 |
.361 |
.342 |
.422 |
.406 |
.171 |
.156 |
.10 |
.02 |
.014 |
8 (.164) |
.344 |
.334 |
.397 |
.381 |
.469 |
.452 |
.203 |
.187 |
.13 |
.02 |
.016 |
10 (.190) |
.375 |
.365 |
.433 |
.416 |
.500 |
.480 |
.219 |
.203 |
.13 |
.03 |
.017 |
12 (.216) |
.438 |
.428 |
.505 |
.488 |
.594 |
.574 |
.236 |
.222 |
.14 |
.04 |
.020 |
1/4 (.250) |
.438 |
.428 |
.505 |
.488 |
.594 |
.574 |
.236 |
.222 |
.14 |
.04 |
.020 |
5/16 (.312) |
.500 |
.489 |
.577 |
.557 |
.680 |
.660 |
.283 |
.268 |
.17 |
.04 |
.023 |
3/8 (.375) |
.562 |
.551 |
.650 |
.628 |
.750 |
.728 |
.347 |
.330 |
.23 |
.04 |
.025 |
7/16 (.438) |
.688 |
.675 |
.794 |
.768 |
.937 |
.910 |
.395 |
.375 |
.26 |
.04 |
.032 |
1/2 (.500) |
.750 |
.736 |
.866 |
.840 |
1.031 |
1.000 |
.458 |
.437 |
.31 |
.05 |
.035 |
9/16 (.562) |
.875 |
.861 |
1.010 |
.982 |
1.188 |
1.155 |
.506 |
.483 |
.35 |
.05 |
.040 |
5/8 (.625) |
.938 |
.922 |
1.083 |
1.051 |
1.281 |
1.248 |
.569 |
.545 |
.40 |
.05 |
.044 |
3/4 (.750) |
1.125 |
1.088 |
1.299 |
1.240 |
1.500 |
1.460 |
.675 |
.627 |
.46 |
.06 |
.051 |
Ready Stock
Surface Coatings
General Queries While Buying Serrated Flange Nut
- High rejection rate
- No control on quality and testing
- Non availability
- Late deliveries
- Poor packaging/ Unprofessional Packing
- Poor after sales service
- Supply of wrong grades
- Material inconsistent with ASTM Standards
- Very hard material for use
- Poor surface finish
- No Mill test report
- Dubious Practices
- Lack of knowledge
- Product fails under high pressure
- High pricing of the goods due to supplier commission
Why Choose JF Engg. While Buying Serrated Flange Nut?
- High pressure sustainability
- Impeccable surface finish
- Product replacement warranty
- After sales support and service
- World class buying experience
- Very quick delivery
- Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
- 3rd Party inspection
- Government and Private Laboratory Testing
- Test certificate from ISO 17025 Standards Laboratory
- Same day shipping of the goods
- Highest stock in the country
- Stringent Quality Testing and Control
------------------------------------------------------------------------------------------------------------------------------
For More Information About Serrated Flange Nut please call +91 22 2385 6385 / 2385 638 or send an email to info@jfengg.com
