T Nut
--------------------------------------------------------------
You Are Here -> Home ->Nuts->Nuts Type->T Nut
JF Engineering has been manufacturing T Nut since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
Tee nuts are used whenever machine screw threads are needed in wood for permanent installations or to allow for knockdown and reassembly. They consist of an internally threaded barrel and an integral round base with three (or possibly four) perpendicular prongs adjacent to the barrel.
We produce premium quality T Nuts from various metals & metal alloys as per DIN 508 Standards & Specifications.We also provide passivation,quality coating further processing as per client's requirement.
Orders at JF Engg are guaranteed fast delivery of the T Nut in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The T Nut are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of T Nut in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the T Nut immediately against the purchase order.

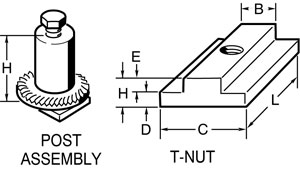

T Nut Dimensions
THREAD SIZE (A) |
B |
C |
D |
E |
F |
M3 |
5 |
0.8 |
4.2 |
4.8 |
13 |
M4 |
6 |
1 |
5 |
5.6 |
15 |
M4 |
8 |
1 |
7 |
5.6 |
17.8 |
M5 |
6 |
1 |
5 |
6.5 |
15 |
M5 |
6 |
1.1 |
4.9 |
6.4 |
17 |
M5 |
8 |
1.3 |
6.7 |
7 |
17 |
M5 |
9 |
1.1 |
7.9 |
6.4 |
17.8 |
M5 |
10 |
1 |
9 |
6.4 |
17.8 |
M6 |
8 |
1.2 |
6.8 |
7.7 |
17.8 |
M6 |
8.9 |
1 |
7.9 |
7.5 |
17.8 |
M6 |
9 |
1.3 |
7.8 |
7.7 |
19 |
M6 |
12 |
1.3 |
10.7 |
7.7 |
19 |
M6 |
14 |
1.3 |
12.7 |
7.7 |
19 |
M8 |
11 |
1.5 |
9.5 |
10 |
22 |
M8 |
12.3 |
1.5 |
10.8 |
10.8 |
22.5 |
M8 |
15 |
1.6 |
13.4 |
10.3 |
22 |
M8 |
16.5 |
1.4 |
15.1 |
9.8 |
22.5 |
M8 |
17 |
1.6 |
15.4 |
9.9 |
22 |
M10 |
12 |
1.8 |
10.2 |
12 |
25 |
Ready Stock
Surface Coatings
General Queries While Buying T Nut
- High rejection rate
- No control on quality and testing
- Non availability
- Late deliveries
- Poor packaging/ Unprofessional Packing
- Poor after sales service
- Supply of wrong grades
- Material inconsistent with ASTM Standards
- Very hard material for use
- Poor surface finish
- No Mill test report
- Dubious Practices
- Lack of knowledge
- Product fails under high pressure
- High pricing of the goods due to supplier commission
Why Choose JF Engg. While Buying T Nut?
- High pressure sustainability
- Impeccable surface finish
- Product replacement warranty
- After sales support and service
- World class buying experience
- Very quick delivery
- Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
- 3rd Party inspection
- Government and Private Laboratory Testing
- Test certificate from ISO 17025 Standards Laboratory
- Same day shipping of the goods
- Highest stock in the country
- Stringent Quality Testing and Control
------------------------------------------------------------------------------------------------------------------------------
For More Information About T Nut please call +91 22 2385 6385 / 2385 638 or send an email to info@jfengg.com
