JF Engineering has been manufacturing Countersunk Washer since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
Countersunk finishing washers are round formed washers that are designed to be used with flat and oval head screws such as wood screws, sheet metal (tapping) screws and machine screws. Being raised and convex, they accept standard 82° countersunk heads.
We Manufacture & Supply superior quality Countersunk Washers in Stainless Steel,Galvanized Steel, Alloy Steel,Carbon Steel,Titanium Alloys, Nickel Alloys like Inconel, Monel, Hastelloy, Alloy 20, Copper, Brass, Aluminum,Cupro Nickel Alloys, Duplex & Super Duplex Steel etc with standard sizes like M6,M8,M10 & so on. We also offer customized sizes in these washers with desired surface coating & finish
Orders at JF Engg are guaranteed fast delivery of the Countersunk Washer in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Countersunk Washer are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Countersunk Washer in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Countersunk Washer immediately against the purchase order.

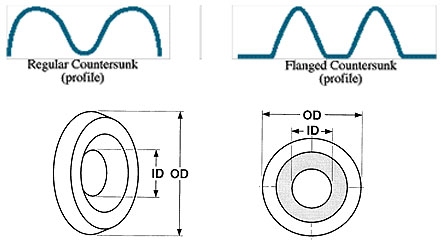

Countersunk Washer Dimensions
Screw Size |
Outside Diameter |
Inside Diameter |
Overall Diameter |
|
Nominal |
Max |
Min |
||
6 |
15/32 |
0.200 |
0.170 |
5/64 |
8 |
17/32 |
0.210 |
0.180 |
7/64 |
10 |
19/32 |
0.265 |
0.235 |
7/64 |
12 |
21/32 |
0.289 |
0.259 |
1/8 |
1/4 |
25/32 |
0.335 |
0.305 |
5/32 |
Ready Stock
Surface Coatings
General Queries While Buying Countersunk Washer
- High rejection rate
- No control on quality and testing
- Non availability
- Late deliveries
- Poor packaging/ Unprofessional Packing
- Poor after sales service
- Supply of wrong grades
- Material inconsistent with ASTM Standards
- Very hard material for use
- Poor surface finish
- No Mill test report
- Dubious Practices
- Lack of knowledge
- Product fails under high pressure
- High pricing of the goods due to supplier commission
Why Choose JF Engg. While Buying Countersunk Washer?
- High pressure sustainability
- Impeccable surface finish
- Product replacement warranty
- After sales support and service
- World class buying experience
- Very quick delivery
- Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
- 3rd Party inspection
- Government and Private Laboratory Testing
- Test certificate from ISO 17025 Standards Laboratory
- Same day shipping of the goods
- Highest stock in the country
- Stringent Quality Testing and Control
------------------------------------------------------------------------------------------------------------------------------
For More Information About Countersunk Washer please call +91 22 2385 6385 / 2385 638 or send an email to info@jfengg.com
