JF Engineering has been manufacturing Flat Washers since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
Plain Washers are most basic type yet widely used Washers.Plain washers depict like a shape of a plain ring.Plain washer are also referred as Flat Type Washers.Washers provide a smooth bearing surface and are used under the head of a bolt and / or a nut. Flat washers are covered under the ASTM specification F844. These washers are unhardened and intended for general use.
.We Manufacturer Plain / Flat type washers as per various ISO/DIN/JIS/ASTM Standards in different Materials viz. Stainless Steel ,Nickel Alloy ,Alloy Steel,Carbon Steel,Copper Nickel ,Copper, Brass,Aluminum,Titanium & other Special Alloys on Request.
Orders at JF Engg are guaranteed fast delivery of the Flat Washers in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Flat Washers are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Flat Washers in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Flat Washers immediately against the purchase order.
Stock
- Diameters: 1/2″ – 3″
- Origin: Domestic
- Finish: Black and hot dip galvanized

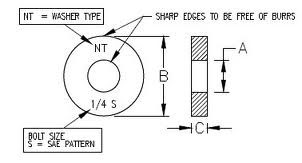

Flat Washers Dimensions
Bolt Size |
A |
B |
C |
Weight (lbs.) Per 100 Pieces |
Part numbers |
|||
|---|---|---|---|---|---|---|---|---|
Inside Diameter |
Outside Diameter |
Thickness |
Domestic |
Import |
||||
Black |
Galvanized |
Black |
Galvanized |
|||||
1⁄2 |
9⁄16 |
13⁄8 |
0.109 |
4 |
16408 |
1609 |
19794 |
19795 |
5⁄8 |
11⁄16 |
13⁄4 |
0.134 |
8 |
16410 |
16411 |
19796 |
19797 |
3⁄4 |
13⁄16 |
2 |
0.148 |
11 |
16412 |
16413 |
19798 |
19799 |
7⁄8 |
15⁄16 |
21⁄4 |
0.165 |
15 |
16414 |
16415 |
19800 |
19801 |
1 |
11⁄16 |
21⁄2 |
0.165 |
19 |
16416 |
16417 |
19802 |
19803 |
11⁄8 |
11⁄4 |
23⁄4 |
0.165 |
22 |
16418 |
16419 |
19804 |
19805 |
11⁄4 |
13⁄8 |
3 |
0.165 |
26 |
16420 |
16421 |
19806 |
19807 |
13⁄8 |
11⁄2 |
31⁄4 |
0.180 |
33 |
16422 |
16423 |
19808 |
19809 |
11⁄2 |
15⁄8 |
31⁄2 |
0.180 |
38 |
16424 |
16425 |
19810 |
19811 |
15⁄8 |
13⁄4 |
33⁄4 |
0.180 |
43 |
16426 |
16427 |
- |
- |
13⁄4 |
17⁄8 |
4 |
0.180 |
50 |
16428 |
16429 |
19812 |
19813 |
17⁄8 |
2 |
41⁄4 |
0.180 |
57 |
16430 |
16431 |
- |
- |
2 |
21⁄8 |
41⁄2 |
0.180 |
63 |
16432 |
16433 |
19814 |
19815 |
21⁄4 |
23⁄8 |
43⁄4 |
0.220 |
83 |
- |
- |
16434 |
16435 |
21⁄2 |
25⁄8 |
5 |
0.238 |
96 |
- |
- |
16436 |
16437 |
23⁄4 |
27⁄8 |
51⁄4 |
0.259 |
110 |
- |
- |
16670 |
16671 |
3 |
31⁄8 |
51⁄2 |
0.284 |
130 |
- |
- |
16438 |
16439 |
Dimensions per ASME B18.21.1 |
||||||||
Ready Stock
Surface Coatings
General Queries While Buying Flat Washers
- High rejection rate
- No control on quality and testing
- Non availability
- Late deliveries
- Poor packaging/ Unprofessional Packing
- Poor after sales service
- Supply of wrong grades
- Material inconsistent with ASTM Standards
- Very hard material for use
- Poor surface finish
- No Mill test report
- Dubious Practices
- Lack of knowledge
- Product fails under high pressure
- High pricing of the goods due to supplier commission
Why Choose JF Engg. While Buying Flat Washers?
- High pressure sustainability
- Impeccable surface finish
- Product replacement warranty
- After sales support and service
- World class buying experience
- Very quick delivery
- Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
- 3rd Party inspection
- Government and Private Laboratory Testing
- Test certificate from ISO 17025 Standards Laboratory
- Same day shipping of the goods
- Highest stock in the country
- Stringent Quality Testing and Control
------------------------------------------------------------------------------------------------------------------------------
For More Information About Flat Washers please call +91 22 2385 6385 / 2385 638 or send an email to info@jfengg.com
