Tab Washers
--------------------------------------------------------------
You Are Here -> Home ->Washers->Washers Type->Tab Washers
JF Engineering has been manufacturing Tab Washers since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
Tab washers are a type of lock washer, round in shape and often manufactured with a single tab or multiple tabs and notches that can be formed to shape around bolts/nuts or designed to lay flat. Ideal for use in harsh environments, tab washers effectively lock a part into place in applications requiring extreme heat conditions or heavy vibrations.
tab washers manufactured in a wide variety of sizes and materials. Tab washer sizes include outside diameters ranging from .0841 inches to 6.000 inches, in addition to multiple inside diameter and thickness options, allowing tab washer compatibility with all types of nuts, bolts or fastening systems. Boker’s manufactures numerous configurations of tab washers including: internal tab, external tab, internal/external tab, multiple internal/external tab, and locking tab washers.
Orders at JF Engg are guaranteed fast delivery of the Tab Washers in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Tab Washers are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Tab Washers in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Tab Washers immediately against the purchase order.

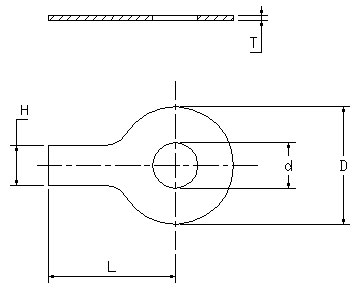

Tab Washers Dimensions
| Part No. | For Bold Size | T | H | L | d | D |
| TW 8 | M8 | 0.8 | 8 | 20 | 8.4 | 22 |
| TW 10 | M10 | 0.8 | 10 | 22 | 10.5 | 26 |
| TW 12 | M12 | 1 | 12 | 28 | 13 | 30 |
| TW 14 | M14 | 1 | 12 | 28 | 15 | 33 |
| TW 16 | M16 | 1 | 15 | 32 | 17 | 36 |
| TW 18 | M18 | 1 | 18 | 36 | 19 | 40 |
| TW 20 | M20 | 1 | 18 | 36 | 21 | 42 |
| TW 22 | M22 | 1 | 20 | 42 | 23 | 50 |
| TW 24 | M24 | 1 | 20 | 42 | 25 | 50 |
| TW 27 | M27 | 1.6 | 23 | 48 | 28 | 58 |
| TW 30 | M30 | 1.6 | 26 | 52 | 31 | 63 |
| TW 33 | M33 | 1.6 | 28 | 56 | 34 | 68 |
| TW 36 | M36 | 1.6 | 30 | 60 | 37 | 75 |
| TW 39 | M39 | 1.6 | 32 | 64 | 40 | 82 |
| TW 42 | M42 | 1.6 | 35 | 70 | 43 | 88 |
| TW 45 | M45 | 1.6 | 38 | 75 | 46 | 95 |
| TW 48 | M48 | 1.6 | 40 | 80 | 50 | 100 |
| TW 52 | M52 | 1.6 | 44 | 85 | 54 | 105 |
.. |
Ready Stock
Surface Coatings
General Queries While Buying Tab Washers
- High rejection rate
- No control on quality and testing
- Non availability
- Late deliveries
- Poor packaging/ Unprofessional Packing
- Poor after sales service
- Supply of wrong grades
- Material inconsistent with ASTM Standards
- Very hard material for use
- Poor surface finish
- No Mill test report
- Dubious Practices
- Lack of knowledge
- Product fails under high pressure
- High pricing of the goods due to supplier commission
Why Choose JF Engg. While Buying Tab Washers?
- High pressure sustainability
- Impeccable surface finish
- Product replacement warranty
- After sales support and service
- World class buying experience
- Very quick delivery
- Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
- 3rd Party inspection
- Government and Private Laboratory Testing
- Test certificate from ISO 17025 Standards Laboratory
- Same day shipping of the goods
- Highest stock in the country
- Stringent Quality Testing and Control
------------------------------------------------------------------------------------------------------------------------------
For More Information About Tab Washers please call +91 22 2385 6385 / 2385 638 or send an email to info@jfengg.com
