Coupling Nut
--------------------------------------------------------------
You Are Here -> Home ->Nuts->Nuts Type->Coupling Nut
JF Engineering has been manufacturing Coupling Nut since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
Coupling nuts are long hex nuts chamfered (beveled) at each end and used to couple two externally threaded objects of the same size and thread pitch. They can join different parts, like a hanger bolt and a threaded rod, or connect identical items, such as two threaded rods, to extend length. Sometimes coupling nuts function as spacers/standoffs. They are also known as: extension nuts, rod coupling nuts, hex spacers.
We produce Hex coupling Nuts also called as Hex Coupler/Hex Coupling Nuts in Stainless Steel grades,Alloy Steel,Inconel Alloy,Monel,Incoloy,Hastelloy C,Alloy 20,Duplex & Super Duplex,AISI 904L,etc.We manufacture these coupling nuts in various sizes as per DIN 6334 Standard.
Orders at JF Engg are guaranteed fast delivery of the Coupling Nut in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Coupling Nut are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Coupling Nut in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Coupling Nut immediately against the purchase order.
Stock
- Diameters: 1/2″ – 1″
- Grade: A563 (grades A and DH)
- Origin: Domestic and import
- Finish: Black and hot dip galvanized
Available
- Diameters: 1/2″ – 6″
- Grade:A563 (grades A, C, and DH), A194 grade 2H
- Origin: Domestic and import
- Finish: Black and hot dip galvanized

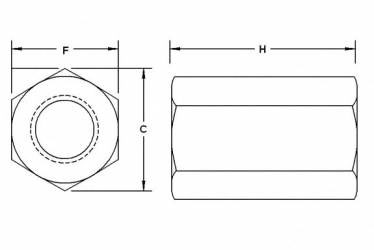

Finished Hex Coupler Pattern Dimensions
ominal Size |
F |
C |
H |
Part Numbers |
||||||
---|---|---|---|---|---|---|---|---|---|---|
Width Across Flats |
Width Across Corners |
Length/Thickness |
Import |
|||||||
Basic |
Max |
Min |
Max |
Min |
Basic |
Max |
Min |
Black |
Galvanized |
|
1⁄2 |
11⁄16 |
0.688 |
0.663 |
0.794 |
0.756 |
13⁄4 |
1.760 |
1.690 |
12338 |
17525 |
5⁄8 |
13⁄16 |
0.813 |
0.782 |
0.939 |
0.891 |
21⁄8 |
2.135 |
2.067 |
12559 |
18195 |
3⁄4 |
1 |
1.000 |
0.963 |
1.155 |
1.097 |
21⁄4 |
2.260 |
2.190 |
12557 |
17526 |
7⁄8 |
11⁄4 |
1.250 |
1.212 |
1.443 |
1.382 |
21⁄2 |
2.510 |
2.440 |
12558 |
19504 |
1 |
13⁄8 |
1.375 |
1.325 |
1.588 |
1.511 |
23⁄4 |
2.760 |
2.690 |
- |
18494 |
11⁄8 |
11⁄2 |
1.500 |
1.450 |
1.732 |
1.653 |
3 |
3.010 |
2.940 |
18394 |
- |
11⁄4 |
15⁄8 |
1.625 |
1.575 |
1.876 |
1.825 |
3 |
3.010 |
2.940 |
18994 |
17529 |
11⁄2 |
2 |
2.000 |
1.950 |
2.309 |
2.275 |
31⁄2 |
3.510 |
3.440 |
- |
- |
Dimensions per ASME B18.2.2 2010 Some dimensions may vary by supplier |
Heavy Hex Coupler Pattern Dimensions
Nominal Size |
F |
C |
H |
Part Numbers |
||||||
---|---|---|---|---|---|---|---|---|---|---|
Width Across Flats |
Width Across Corners |
Thickness |
A563DH Domestic |
|||||||
Basic |
Max |
Min |
Max |
Min |
Basic |
Max |
Min |
Black |
Galvanized |
|
1⁄2 |
7⁄8 |
0.875 |
0.850 |
1.010 |
0.969 |
11⁄2 |
- |
- |
- |
- |
5⁄8 |
11⁄16 |
1.062 |
1.031 |
1.227 |
1.175 |
17⁄8 |
- |
- |
17543 |
17544 |
3⁄4 |
11⁄4 |
1.250 |
1.212 |
1.443 |
1.382 |
21⁄4 |
- |
- |
- |
17527 |
7⁄8 |
17⁄16 |
1.438 |
1.394 |
1.660 |
1.589 |
25⁄8 |
- |
- |
- |
- |
1 |
15⁄8 |
1.625 |
1.575 |
1.876 |
1.796 |
3 |
- |
- |
- |
12343 |
11⁄8 |
113⁄16 |
1.812 |
1.756 |
2.093 |
2.002 |
33⁄8 |
- |
- |
- |
- |
11⁄4 |
2 |
2.000 |
1.938 |
2.309 |
2.209 |
33⁄4 |
- |
- |
17547 |
17548 |
11⁄2 |
23⁄8 |
2.375 |
2.300 |
2.742 |
2.622 |
41⁄2 |
- |
- |
17551 |
17552 |
15⁄8 |
29⁄16 |
2.562 |
2.481 |
2.959 |
2.828 |
47⁄8 |
4.91 |
4.83 |
- |
- |
13⁄4 |
23⁄4 |
2.750 |
2.662 |
3.175 |
3.035 |
51⁄4 |
5.29 |
5.21 |
17553 |
17554 |
17⁄8 |
215⁄16 |
2.938 |
2.844 |
3.392 |
3.242 |
55⁄8 |
5.67 |
5.58 |
- |
- |
2 |
31⁄8 |
3.125 |
3.025 |
3.608 |
3.449 |
6 |
6.04 |
5.95 |
17555 |
17556 |
21⁄4 |
31⁄2 |
3.500 |
3.388 |
4.041 |
3.862 |
63⁄4 |
6.80 |
6.70 |
- |
- |
21⁄2 |
37⁄8 |
3.875 |
3.750 |
4.474 |
4.275 |
71⁄2 |
7.55 |
7.44 |
- |
- |
23⁄4 |
41⁄4 |
4.250 |
4.112 |
4.907 |
4.688 |
81⁄4 |
8.31 |
8.19 |
- |
- |
3 |
45⁄8 |
4.625 |
4.475 |
5.340 |
5.102 |
9 |
9.06 |
8.94 |
- |
- |
31⁄4 |
5 |
5.000 |
4.838 |
5.774 |
5.515 |
93⁄4 |
9.81 |
9.68 |
- |
- |
31⁄2 |
53⁄8 |
5.375 |
5.200 |
6.207 |
5.928 |
101⁄2 |
10.57 |
10.43 |
- |
- |
33⁄4 |
53⁄4 |
5.750 |
5.562 |
6.640 |
6.341 |
111⁄4 |
11.32 |
11.17 |
- |
- |
4 |
61⁄8 |
6.125 |
5.925 |
7.073 |
6.755 |
12 |
12.08 |
11.92 |
- |
- |
41⁄2 |
67⁄8 |
6.875 |
6.650 |
7.939 |
7.581 |
131⁄2 |
- |
- |
- |
- |
5 |
75⁄8 |
7.625 |
7.375 |
8.805 |
8.408 |
15 |
- |
- |
- |
- |
Heavy coupler dimensions are not defined by ASME 18.2.2. The width across the flats and corners match the dimensions of a heavy hex nut. |
