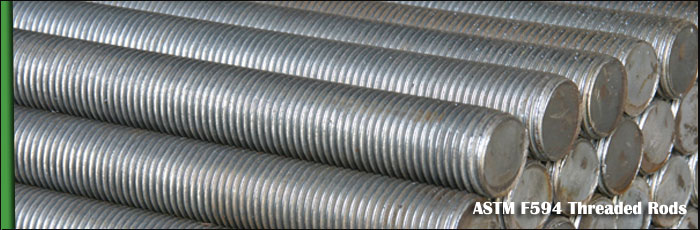

ASTM f594 Threaded Rods at our Vasai, Mumbai Factory





Manufacturer of comprehensive range ASTM F594 Threaded Rods in Excellent Quality with low price





Manufacture one of the widest ranges of ASTM F594 Threaded Rods in India at Best Factory Rate



JF Engineering has been manufacturing ASTM F594 Threaded Rods since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.



JF Engineering is the industry leader in offering what is undoubtedly the most comprehensive ASTM F594 Fasteners range and stock in all sizes of bolts, nuts, washers, hex socket screws, metal thread screws, self-tapping & wood screws and security products in metric, imperial and in all grades.An extensive portfolio that covers all aspects and requirements of the industry, providing quality products that can be used in confidence



ASTM F594 covers the chemical and mechanical requirements for stainless steel nuts in diameters ranging from 1/4″ to 1-1/2″ inclusive and for use with fasteners conforming to ASTM F593. These nuts are for general purpose usage, and are available in seven alloy groups. Below is a basic summary of the common grades within the ASTM F594 specification. A number of other less common grades of ASTM F594 exist, but are not detailed in the description below. The Mechanical table here is limited to Alloy groups 1 and 2, as those are the most common and the Chemical table is only showing the most common alloy grades used for their respective alloy groups. More detailed information can be found in the ASTM F594 standard on the ASTM website.



We manufacture premium quality  ASTM F594 Threaded Rods from various Stainless Steel Grades with ASTM/ASME/DIN Standards & Specifications.We manufacture different types of Bolts hot forged cold formed Bolts in almost all shapes & sizes.We also provide passivation,quality coating further processing as per client's requirement.



Orders at JF Engg are guaranteed fast delivery of the ASTM F594 Threaded Rods in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The ASTM F594 Threaded Rods are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of ASTM F594 Threaded Rods in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the ASTM F594 Threaded Rods immediately against the purchase order.



Specification



F593 Alloy Groups



Alloy Group
Alloy Designation
Alloy Type
1
303, 304, 304L, 305, 384, XM1, 18-9LW, 302HQ, 303Se
Austenitic
2
316, 316L
Austenitic
3
321, 347
Austenitic
4
430, 430F
Ferritic
5
410, 416, 416Se
Martensitic
6
431
Martensitic
7
630 (17-4)
Precipitation Hardening
*The selection of an alloy within each group is at the discretion of the manufacturer unless the purchaser requests a specific alloy.






Stud Bolt / Threaded Rods Type



Hex Head Bolt
Socket Cap Screw
Carriage Bolt
Anchor Bolt
Eye Bolt
Flange Bolt
Elevator Bolt
Lag Bolt
Draw Bolt
Plow Bolt
Stove Bolt
Tap Bolt
Machine Bolt
Hanger Bolt
U Bolt
Grub Screw
Set Screw
Shoulder Bolt
Step Bolt
J Bolt








ASTM F594 Threaded Rods Useful Info



Chemical Composition

Typical compositional ranges for grade ASTM F594 Threaded Rods



Element, max except as shown
Alloy Group 1, Type 304
Alloy Group 2, Type 316
Carbon
0.08%
0.08%
Manganese
2.00%
2.00%
Phosphorus
0.045%
0.045%
Sulfur
0.030%
0.030%
Silicon
1.00%
1.00%
Chromium
18.0 to 20.0%
16.0 to 18.0%
Nickel
8.0 to 10.5%
10.0 to 14.0%
Copper
1.00%
Molybdenum
2.00 to 3.00%



Mechanical Properties

Typical mechanical properties for grade ASTM F594 Threaded Rods



Alloy Group
Condition
Marking
Diameter Range
Proof Stress, Hex Nuts, ksi
Proof Stress, Heavy Hex Nuts, ksi
Rockwell Hardness
1
AF
F594A
1/4 to 1-1/2
70
76
B85 max
A
F594B
1/4 to 1-1/2
75
81
B65 to 95
CW1
F594C
1/4 to 5/8
100
108
B95 to C32
CW2
F594D
3/4 to 1-1/2
85
92
B80 to C32
2
AF
F594E
1/4 to 1-1/2
70
76
B85 max
A
F594F
1/4 to 1-1/2
75
81
B65 to 95
CW1
F594G
1/4 to 5/8
100
108
B95 to C32
CW2
F594H
3/4 to 1-1/2
85
92
B80 to C32









ASTM F594 Threaded Rods Price



->

stainless steel 304 316 threaded rods



10000 Pieces (Min. Order)





->

304 and 316 stainless steel threaded rod passivated
  US $0.01-0.5 / Piece





ASTM F594 Threaded Rods Inventory













General Queries While Buying ASTM F594 Threaded Rods



  • High rejection rate
  • No control on quality and testing
  • Non availability
  • Late deliveries
  • Poor packaging/ Unprofessional Packing
  • Poor after sales service
  • Supply of wrong grades
  • Material inconsistent with ASTM Standards
  • Very hard material for use
  • Poor surface finish
  • No Mill test report
  • Dubious Practices
  • Lack of knowledge
  • Product fails under high pressure
  • High pricing of the goods due to supplier commission





Why Choose JF Engg. While Buying ASTM F594 Threaded Rods?



  • High pressure sustainability
  • Impeccable surface finish
  • Product replacement warranty
  • After sales support and service
  • World class buying experience
  • Very quick delivery
  • Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
  • 3rd Party inspection
  • Government and Private Laboratory Testing
  • Test certificate from ISO 17025 Standards Laboratory
  • Same day shipping of the goods
  • Highest stock in the country
  • Stringent Quality Testing and Control
