Hastelloy C22 Bolts
----------------------------------------------------------------------------



You Are Here -> Home ->Exotic Alloy Fasteners->Hastelloy Alloy Fasteners -> Hastelloy C22 Bolts

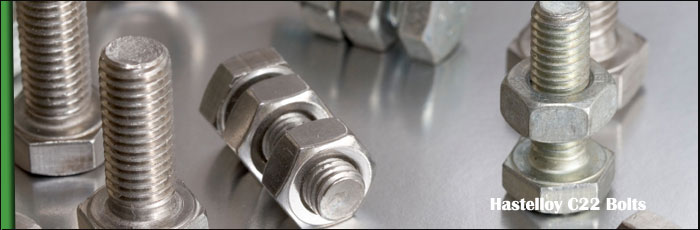

Hastelloy C22 Bolts at our Vasai, Mumbai Factory





Manufacturer of comprehensive range Hastelloy C22 Bolts in Excellent Quality with low price





Manufacture one of the widest ranges of Hastelloy C22 Bolts in India at Best Factory Rate



JF Engineering has been manufacturing Hastelloy C22 Bolts since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.



Hastelloy is the registered trademark name of Haynes International, Inc.Hastelloy® fasteners, such as Hastelloy C276 fasteners, are made from nickel-molybdenum-chromium alloy that is generally considered a versatile highly corrosion resistant alloy. Hastelloy fasteners have excellent corrosion resistance in both oxidizing and reducing media which makes it well suited for a variety of strong corrosive applications. Hastelloy fasteners also have exceptional resistance to both sulfuric acid and hydrochloric acid.



when the task calls for Hastelloy C22 Bolts, call for JF Engg.Hastelloy C22, also known as alloy C22, is a versatile austenitic nickel-chromium-molybdenum-tungsten alloy with enhanced resistance to pitting, crevice corrosion and stress corrosion cracking. The high chromium content provides good resistance to oxidizing media while the molybdenum and tungsten content give good resistance to reducing media.



Hastelloy C-22 has resistance to are oxidizing acid chlorides, wet chlorine, formic and acetic acids, ferric and cupric chlorides, sea water, brine and many mixed or contaminated chemical solutions, both organic and inorganic. Alloy C-22 should not be used in service temperatures above 1250° F due to the formation of detrimental phases which form above this temperature.


JF Engg prominently manufactures Hastelloy C22 Bolts in half thread & full thread length with ready delivery, material in stock.Hastelloy C22 hex Bolts & heavy hex bolts are primarily manufacturer & supply at JF Engg.We offer Sizes standard range from M5 upto M72 & Above on request & Customized.



Orders at JF Engg are guaranteed fast delivery of the Hastelloy C22 Bolts in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. TheHastelloy C22 Bolts are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Hastelloy C22 Bolts in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Hastelloy C22 Bolts immediately against the purchase order.






Specification



Material
Size
Length
Specification
Manufacturer

Hastelloy Alloy



M02 to M33

3 mm
to
200 mm

IS

BS

ASTM

GKW

Unbrako

Kundan

APL

Sundaram Precision

EBY Fastener Etc.




Material:
Hastelloy,.Cupro Nickel, Nickel, Hastelloy,Inconel, Alloy 20 Etc.
Standard :

ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472
Nickel Alloy in Grade:
 UNS 2200 (Nickel 200) / UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Type of Fasteners:

Bolts : Bolts stud bolts, hex head bolts, socket hexagon head screw anchor bolts, u-bolts, J bolts, mushroom head square neck bolts, t- head bolts, wing screw, eye bolt, eye bolt, foundation bolts and structural bolts

Washer : Plain washer , plain big & small OD washer , spring lock washer , spring washer heavy duty , tooth washer , star washer , tab washer with one & two tab

Nuts : Hexagon nuts, hexagon coupling nuts, hexagon thin nut, square nut, hexagon castle nuts, self locking nut, hexagon domed cap nuts

Screw : Pan head slotted screws, cheese head slotted screws, countersunk head slotted screws, countersunk raised head slotted screws, pan phillipse head screw, countersunk Phillipse raised head screws, slotted cheese trim head machine screws, socket head allen cap screws, allen countersunk socket head cap screws, socket head shoulder screws, socket head cap screw low head, hexagon socket set screw with flat point, hexagon socket set screws with cone point, hexagon socket set screw with dog point, hexagon socket set screws with dog point, hexagon socket set screws with cup point, imprial socket cap screws.

Other : Threaded rod, as per drawing and customers spec. coating, hot dipped galvanizing, phosphate, Teflon, xylon, zinc, cadmium.


In Form of:

Hex, Square, Round , Threading as per Gauge Etc.



Bolt Type



Hex Head Bolt
Socket Cap Screw
Carriage Bolt
Anchor Bolt
Eye Bolt
Flange Bolt
Elevator Bolt
Lag Bolt
Draw Bolt
Plow Bolt
Stove Bolt
Tap Bolt
Machine Bolt
Hanger Bolt
U Bolt
Grub Screw
Set Screw
Shoulder Bolt
Step Bolt
J Bolt





Grade Designation



STANDARD
HASTALLOY C 22
UNS
N06022
WERKSTOFF NR.
2.4602
EN
NiCr21Mo14W
JIS
NW 6022






Hastelloy C22 Bolts Useful Info



Chemical Composition

Typical compositional ranges for Hastelloy C22 Bolts



Element
 Content (%)
Ni
56%
Cr
22%
Mo
13%
Co
2.5% max
W
3%
Fe
3%





Mechanical Properties

Typical mechanical properties for Hastelloy C22 Bolts



Condition
Approx. tensile strength
Approx. operating temperature
N/mm²
ksi
°C
°F
Annealed
800 - 1100
116 - 159
-200 to +400
-330 to +750
Spring Temper
1400 - 1700
203 - 247
-200 to +400
-330 to +750





Physical Properties



Typical Physical Properties for Hastelloy C22 Bolts



DENSITY (G/CM 3)
8.61
DENSITY (LB/IN 3)
0.311
MELTING POINT (°C)
1351 – 1387
MELTING POINT (°F)
2464 – 2529





Hastelloy C22 Bolts Price



->

Alloy Steel Fastener Hastelloy C22 Hex Bolt

10 Pieces (Min. Order)



->

Hastelloy C22/ N06022 special alloy bolts and nuts
  US $0.001-0.005 / Piece





Hastelloy C22 Bolts Inventory











General Queries While Buying Hastelloy C22 Bolts



  • High rejection rate
  • No control on quality and testing
  • Non availability
  • Late deliveries
  • Poor packaging/ Unprofessional Packing
  • Poor after sales service
  • Supply of wrong grades
  • Material inconsistent with ASTM Standards
  • Very hard material for use
  • Poor surface finish
  • No Mill test report
  • Dubious Practices
  • Lack of knowledge
  • Product fails under high pressure
  • High pricing of the goods due to supplier commission





Why Choose JF Engg. While Buying Hastelloy C22 Bolts ?



  • High pressure sustainability
  • Impeccable surface finish
  • Product replacement warranty
  • After sales support and service
  • World class buying experience
  • Very quick delivery
  • Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
  • 3rd Party inspection
  • Government and Private Laboratory Testing
  • Test certificate from ISO 17025 Standards Laboratory
  • Same day shipping of the goods
  • Highest stock in the country
  • Stringent Quality Testing and Control



Global Network



------------------------------------------------------------------------------------------------------------------------------



For More Information About Hastelloy C22 Bolts please call +91 22 2385 6385 / 2385 638 or send an email to  info@jfengg.com
